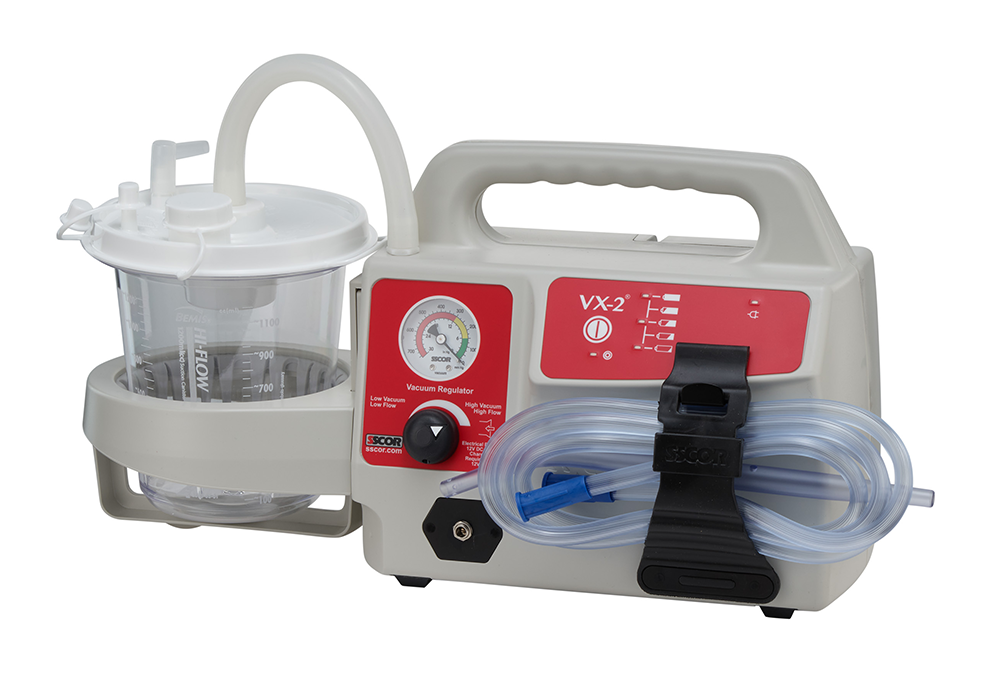

SSCOR VX-2® Flat BackVersatile, powerful, and "firefighter” proof

New Call-to-action

Features & Specifications

Features FEATURES:

  • Fully adjustable regulator and gauge, enabling the user to adjust negative pressure to any point between <50mmHg to >525mmHg to perform a full range of suction procedures
  • Well protected yet easily accessible suction canister
  • IPX4 rated for resistance to ingress of fluids
  • Internal battery care system with external indicators
  • Ramps up incoming voltage to fully charge the battery
  • Provides a float charge when the battery is fully charged to avoid over-charging
  • Disconnects a depleted battery to avoid destructive deep discharge
  • LED indicators on the front panel show battery condition
  • Sealed lead acid battery makes replacing the battery affordable
  • The SSCOR VX-2 Flat Back is not recommended for hospital use

NOTE:  If you purchase a SSCOR VX-2 without the charging/retention bracket you cannot retrofit the device to accommodate the bracket at a later date.

Specifications SPECIFICATIONS:

Performance: Clinical Airflow Rating > 30lpm Variable Regulator and Gauge provides negative pressure readings between
< 50mmHg to > 525mmHg.
Battery Run Time: 45 minutes (+/- 10%) when fully charged at full capacity
Battery Condition Indicators LED indicators show battery level of charge
Internal Battery Charger Charges the battery from AC or DC power source.  Charges the internal sealed lead acid battery and disconnects a depleted battery to avoid a deep discharge. LED's indicate charging status and remaining run time on internal battery.
Dimensions: 17” L x 9” H x 5.25” W
43.2cm L x 22.9cm H x 13.3cm W
Weight: 8.6 lbs. or 3.9 kg
Ingress Protection: IPX4

Standard Items Included With Product STANDARD ITEMS INCLUDED WITH PRODUCT:

DC Cable, AC/DC Converter, canister, 2m patient tube, Hi-D® suction tip and Quickstart Guide.

Conforms To CONFORMS TO:

ETL listed, conforms to UL 60601-1, IEC 60601-1, EN 60601-1-2, CSA C22.2 No. 601.1 - M90, IPX4 per IEC 60529.

Reference Model Number REFERENCE / MODEL NUMBER:


Request A Free Quote


Reliable suction: variable regulator and gauge

Request A Demo Unit

Free Aspirator Test Kit

  Printable Page


The VX-2 comes complete with an internal battery
maintenance system.

Warning WARNING:
This device contains a Sealed Lead Acid Battery. Sealed Lead Acid Batteries contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Batteries also contain other chemicals known to the State of California to cause cancer. For more information, go to
