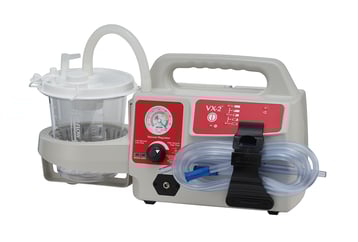

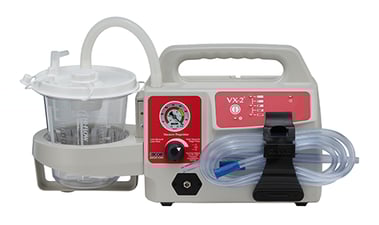

The SSCOR VX-2 is a lightweight, portable, powerful and "firefighter" tough, battery powered suction unit. The VX-2 is powerful enough to meet state, national and international standards for portable suction equipment (>30 lpm airflow and >525mmHg negative pressure).

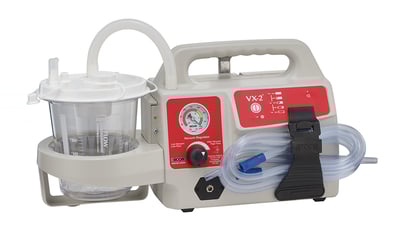

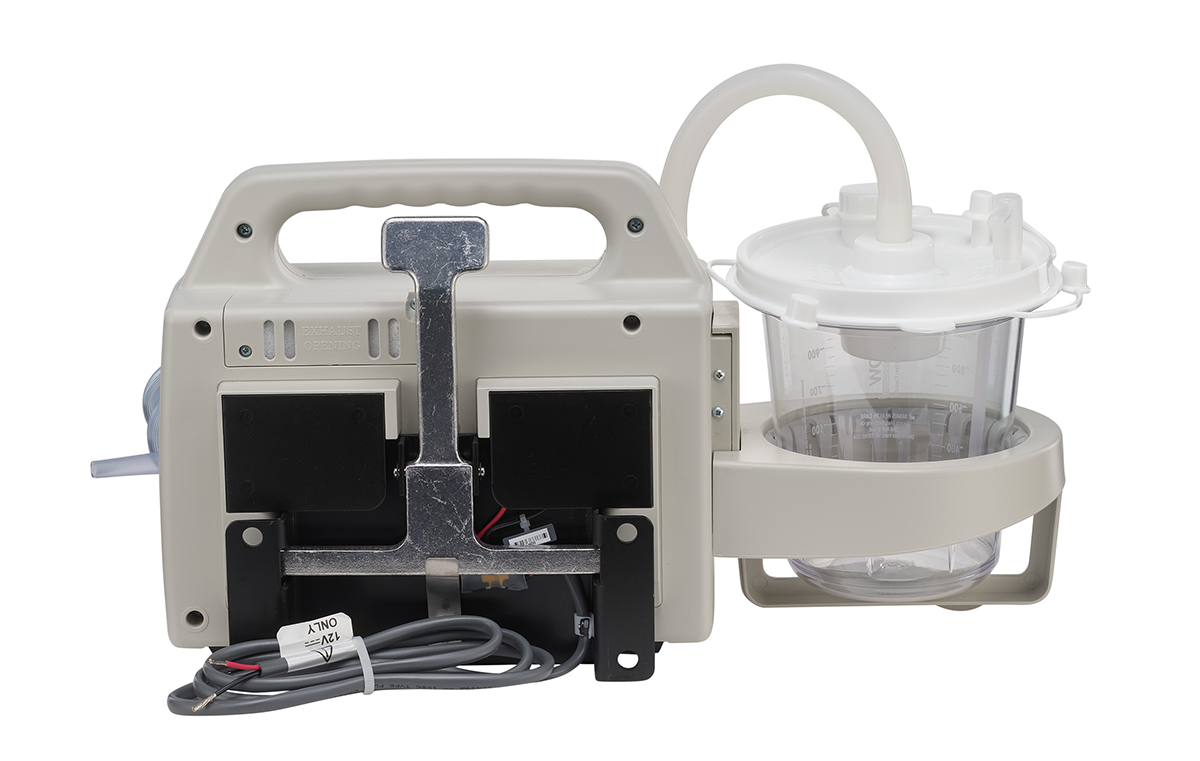

The bracket back version enables you to mount the VX-2 to the action wall with its SAE J 3043 compliant charging/retention bracket to use as an onboard suction device. When removed from its bracket, it is a portable suction device used outside the vehicle!
The control panel indicates vacuum level, battery condition, connection to power and lets the user know the pump is running. Charging is controlled for maximum battery life and the PC board protects the battery from deep discharge.
The device also features outward facing controls that are easily accessible during operation. The variable regulator allows the negative pressure to be adjusted quickly between <50 to >525mmHg with a quarter turn of the knob to provide reduced vacuum for tracheal and pediatric procedures as well as vacuum less than 50mmHg for neonates.
SAE J3043 compliant when used with a 1200cc Bemis canister
and the SSCOR #230-00003 Onboard Canister Clip.
Pictured above and not included.

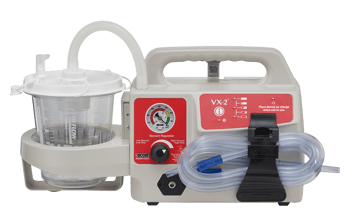

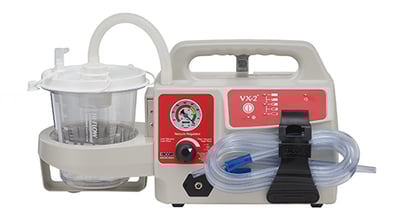

SSCOR VX-2 with Charging/Retention Bracket
Can be used as an onboard suction device as well as
a portable suction device.
