SSCOR VX-2® with Charging/Retention Bracket

New Call-to-action

Features & Specifications

Features FEATURES:

  • Compliant with SAE J3043 standards*
  • When the device is on the charging/retention bracket the device runs using the vehicle battery and uses the vehicle battery to charge the internal sealed lead acid battery
  • The device can be removed from the charging /retention bracket with one hand.
  • Fully adjustable regulator and gauge. Achieves negative pressure ratings to any point between <50mmHg to >525mmHg to perform a full range of suction procedures
  • Well protected yet easily accessible suction canister
  • Outward facing controls allow the operator to easily operate the device while it is on the charging/retention bracket.
  • IPX4 rated for resistance to ingress of fluids
  • Internal battery care system with external indicators
  • Ramps up incoming voltage to optimally charge the battery
  • Provides a float charge when the battery is fully charged to avoid over-charging
  • Disconnects a depleted battery to avoid destructive deep discharge
  • LED indicators on the front panel show battery condition
  • Sealed Lead Acid Battery makes replacing the battery affordable. SSCOR will replace the battery free of charge if the battery does not perform to specifications within three years of purchase (SSCOR VX-2 with Charging/Retention Bracket only)
  • The SSCOR VX-2 with Charging/Retention Bracket series is not recommended for hospital use

NOTE: If you purchase a SSCOR VX-2 without the charging/retention bracket you cannot retrofit the device to accommodate the bracket at a later date.


Specifications SPECIFICATIONS:

Performance Clinical Airflow Rating > 30lpm
Variable Regulator and Gauge provides negative pressure readings between <50mmHg to >525mmHg
Battery Run Time: 45 minutes (+/- 10%) when fully charged at full capacity
Battery Condition Indicators LED indicators show battery level of charge
Internal Battery Charger Charges the battery from AC or DC power source. Charges the internal sealed lead acid battery and disconnects a depleted battery to avoid a deep discharge. LED's indicate charging status and remaining run time on internal battery.
Charging/Retention Bracket Secures the device to a force of 25G,
EN 1789 compliant and SAE J3043 compliant.*
Dimensions 17” L x 9” H x 5.25” W
43.2cm L x 22.9cm H x 13.3cm W
Weight

9.2 lbs /4.17 kg (device with bracket)
8.6 lbs /3.9 kg  (device only)

Ingress Protection IP34

Standard Items Included With Product STANDARD ITEMS INCLUDED WITH PRODUCT:

Charging/Retention Bracket, canister, 2m patient tube, Hi-D® suction tip and Quickstart Guide.

Conforms To CONFORMS TO:

ETL listed and conforms to ISO 10079-1, UL 60601-1, EN 60601-1-2, CSA C22.2 No. 601.1 - M90, IEC 60529, SAE J3043, EN 1789.

Reference Model Number REFERENCE / MODEL NUMBER:

2310BV

from-the-sscor-blog-4

Blog: How to Hyperoxygenate Before Suctioning


"Hypoxia is one of the most common suctioning complications. It’s also preventable in most scenarios. Hyperoxygenate a patient prior to suctioning to reduce the risk of hypoxia as well as other suctioning complications. Here’s what you need to know about the process. "

POSTED BY
SAM D. SAY - AUG 24, 2022

read-more-3-blue



Request A Free Quote

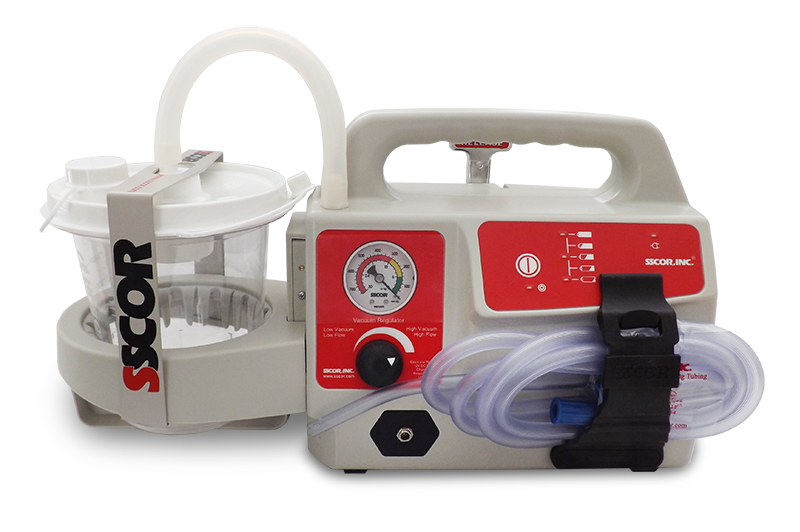

VX-2 Bracket Back featured above without the retention bracket.






Request A Demo Unit

Free Aspirator Test Kit


  Printable Page


sscor vx-2 portable suction

*SAE J3043 compliant when used with a 1200cc Bemis canister
and the SSCOR #230-00003 Onboard Canister Clip.
Pictured above and not included.

When easily removed from the onboard charging/retention
bracket, the SSCOR VX-2 is now a powerful portable suction unit



Warning WARNING:
This device contains a Sealed Lead Acid Battery. Sealed Lead Acid Batteries contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Batteries also contain other chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
