SSCOR DUET® Powerful, Portable, Dependable Hospital Aspirator

New Call-to-action

Features & Specifications

Features FEATURES:

  • Available in two canister configurations
     + 2314 for use with the Bemis canister
     + 2314H for use with either the Medline or Cardinal canister
  • Customizable for liner canister
  • AC suction unit
  • Battery back up
  • When fully charged at full capacity, 45 minutes +/-10% running time
  • >30 lpm clinical airflow
  • Fully adjustable vacuum regulation between <50 and > 525 mmHg  with easy to read and operate regulator and gauge
  • Meets reduced maximum recommendations of 80-120mmhg vacuum for tracheal and pediatric procedures
  • Vacuum as low as < 50 mmhg for neonates
  • Dual mode charger activates when plugged into AC power source
  • Battery charger drops to float when fully charged
  • Clearly labeled battery level indicator
  • 1 year warranty, 3 year battery replacement
  • Lightweight: 10.05 lbs/4.55 kgs
  • Large easy to use handle
  • Sealed lead acid battery

Specifications SPECIFICATIONS:

Performance: >30 lpm clinical airflow, <50 mmHg to > 525 mmHg vacuum
Dimensions: 9" H x 5.25 W x 17 L (22.9 cm H x 13.3cm W x 43.2cmL)
Weight: 10.65 lbs/4.83 kgs Device only
Charger: Internal dual mode battery charger activates when connected to AC power, dropping back to float when battery reaches full capacity. LED's indicate charging status and remaining running time.
Power: AC: 100 – 240V AC, 50 – 60Hz
DC: 12V DC Sealed Lead Acid Battery
Battery: 12v DC Sealed Lead Acid Battery
Run Time: 45 minutes +/- 10% when battery fully charged at full capacity
Input: 100-240V AC, 1.0-0.5A, 50-60 Hz
Output: 40 watts 12V DC 3.3A

Standard Items Included With Product STANDARD ITEMS INCLUDED WITH THE SSCOR DUET HOSPITAL ASPIRATOR

2314 comes with a Bemis canister, 2m patient tube, SSCOR Ducanto Catheter, AC power cord, and SSCOR Quickstart Guide.

2314H comes with a 2m patient tube, SSCOR Ducanto Catheter, AC power cord and SSCOR Quickstart Guide, canister not included.

Conforms To CONFORMS TO:

ETL listed and conforms to ISO 10079-1, UL 60601-1, IEC 60601-1, and EN 60601-1-2 and certified to CAN/CSA STD C22.2 NO. 601.1-M.90, IP34 per IEC 60529, EN1789:1999.

Refrence Model Number REFERENCE / MODEL NUMBER:

 2314 setup for use with the Bemis canister
 2314H setup for use with the Medline canister or Cardinal canister

Request A Free Quote

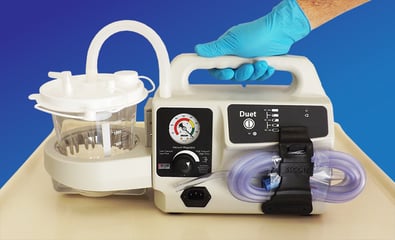

Duet-Main

Powerful AC suction equipped with battery back-up
and dual mode charger.

Free Aspirator Test Kit

  Printable Page



100%

Drag to spin




Warning WARNING:
This device contains a Sealed Lead Acid Battery. Sealed Lead Acid Batteries contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Batteries also contain other chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
