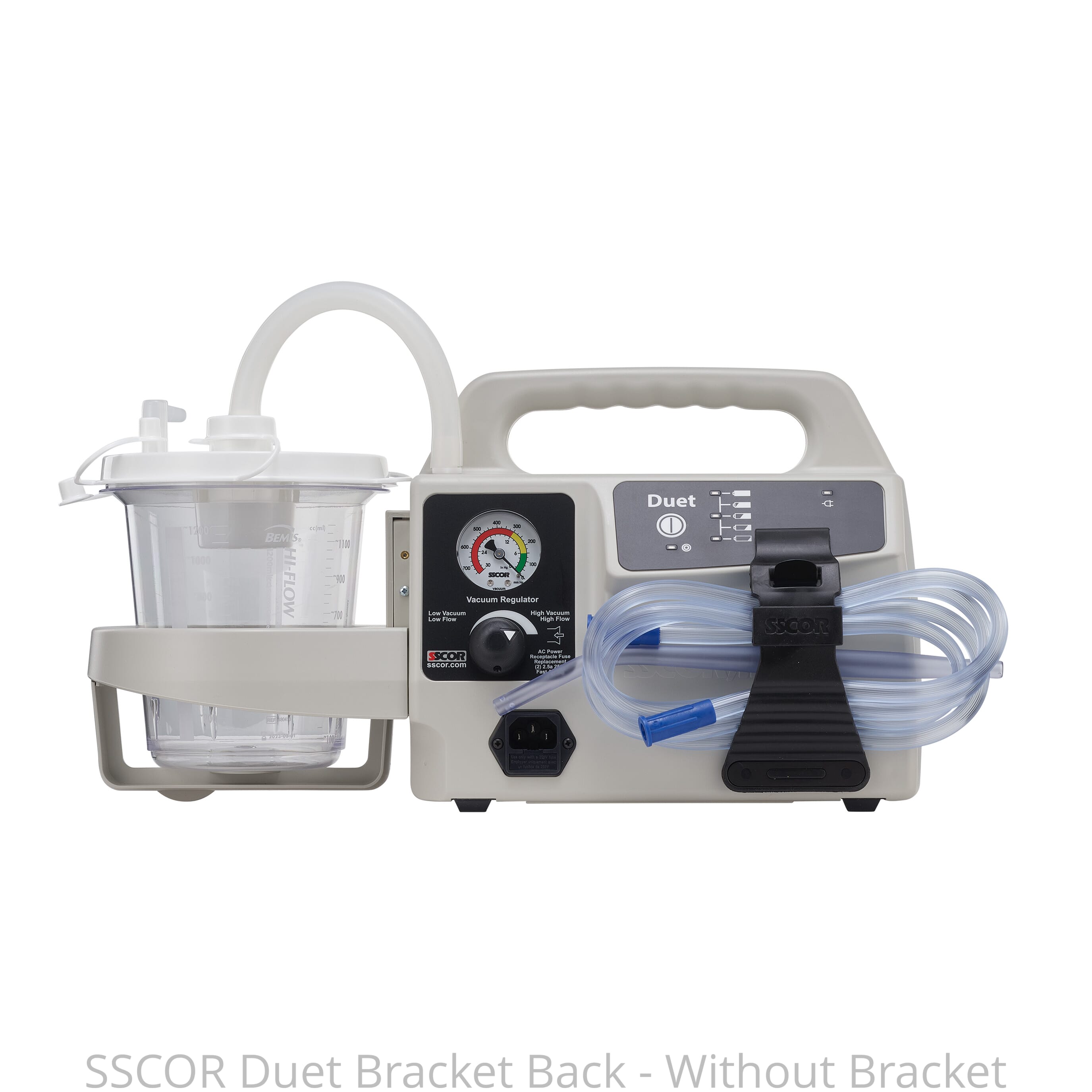

SSCOR DUET with Retention BracketPowerful, Portable Aspirator With Retention Bracket

New Call-to-action

Features & Specifications


Features FEATURES:

  • AC suction unit
  • Battery back up
  • The retention bracket feature allows the Duet to be placed in a convenient location on the crash cart and save valuable work space
  • When fully charged and at full capacity the battery delivers approximately 45 minutes (+/- 10%) running time
  • >30 lpm clinical airflow
  • Vacuum range <50mmHg to >525mmHg
  • Meets reduced maximum recommendations of 80-120 mmHg vacuum for tracheal and pediatric suction prodedures
  • Vacuum as low as <50mmHg for neonates
  • Dual mode battery charger activates when plugged into AC power source
  • Battery charger drops to float when battery is fully charged
  • Clearly labeled battery level indicator
  • 1 year warranty, 3 year battery replacement policy
  • Lightweight: 10.65 lbs/4.83 kgs
  • Large carrying handle
  • Can be customized to fit your canister
  • Sealed lead acid battery making battery replacement affordable
  • CE Marked

Specifications SPECIFICATIONS:

Performance: >30 lpm clinical airflow, <50 mmHg to > 525 mmHg vacuum
Dimensions: 9" H x 5.25 W x 17 L (22.9 cm H x 13.3cm W x 43.2cmL)
Weight: 10.65 lbs/4.83 kgs Device only
Charger: Internal dual mode battery charger activates when connected to AC power, dropping back to float when battery reaches full capacity. LED's indicate charging status and remaining running time.
Power: AC: 100 – 240V AC, 50 – 60Hz
DC: 12V DC Sealed Lead Acid Battery
Battery: 12v DC Sealed Lead Acid Battery
Run Time: 45 minutes +/- 10% when battery fully charged at full capacity
Input: 100-240V AC, 1.0-0.5A, 50-60 Hz
Output: 40 watts 12V DC 3.3A

Standard Items Included With Product STANDARD ITEMS INCLUDED WITH PRODUCT:

Retention bracket, canister, 2m patient tube, HI-D suction tip, AC power cord and Quickstart Guide.

Conforms To CONFORMS TO:

ETL listed and conforms to ISO 10079-1, UL 60601-1, IEC 60601-1, and EN 60601-1-2 and certified to CAN/CSA STD C22.2 NO. 601.1-M.90, IPX4 per IEC 60529, EN1789:1999.

Reference Model Number REFERENCE / MODEL NUMBER:

2314B

Request A Free Quote

2314B-duet-action-7226

Powerful suction designed to easily attach to the crash cart.

Warning WARNING:
This device contains a Sealed Lead Acid Battery. Sealed Lead Acid Batteries contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Batteries also contain other chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
